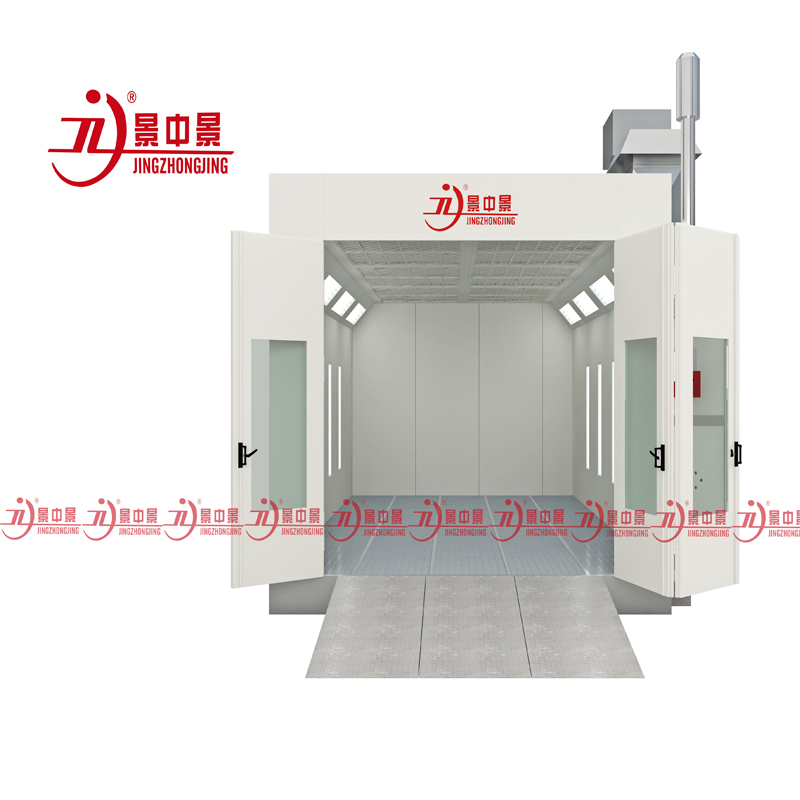

Spray Booth-JZJ-8000-EU

Outside Dimension (mm) 7006*5360*3480(L*W*H) Inside Dimension(mm) 6900*4000*2650(L*W*H)

Front Door(mm) 3000*2600(W*H) Service Door (mm) 800*2000(W*H)

Total Power 19KW

Cabin System Wall panel   50mm rock-wool sandwich panel, steel sheet thickness: 0.6mm

Ceiling panel Galvanized steel sheet.

Basement 300mm depth, full galvanized grids

Ramp Three pieces 2000*900mm ramps

Glass 5mm safety tempered glass

Windows Square glass windows.

Air Make-up System Air inlet fan system 1*7.5kw turbo fan, proof-explosion ABB/Siemens motor,Ex rated

Exhausted fan system 1*7.5kw turbo fan, proof-explosion ABB/Siemens motor,Ex rated

Air capacity 25000m³/h

Air flowing speed 0.3m/s in empty booth

Air control method Air inlet system and exhausted system, each with 1 manual damper

Air ducting 8 meters air duct, one flop damper and one weather hood

Purification System Pre-filter G3 grade, Pocket filter

Ceiling filter EU5 / F5

Floor filter Green fiber glass filter / G3 grade

Exhausted fan filters Pocket filter and active carbon

Heating System Heat exchanger SUS304 material, argon arc welding.

Heating burner:         Riello G20 diesel burner

Heating productivity                              180000Kcal/h

Spray to baking switch 20N BELLIMO brand Electrical Damper

Chimney ducting 3 meters stainless ducting and one chimney cap

Max heating temperature 80℃

Heating time 5-6min(20-60℃)

fuel consumption 6-8L/vehicle

Lighting System Ceiling lights 8 Units, each 4 * 18W LED lamps. Total 576 W

Side lights 8 Units, each 2 * 18W LED lamps, Total 288W

Illumination 900LUX

Controlling System Switched control panel Spraying & baking switch, before baking flash-off, after baking flash off, lighting switch, emergency stop, breakdown alarm, failure alarm
