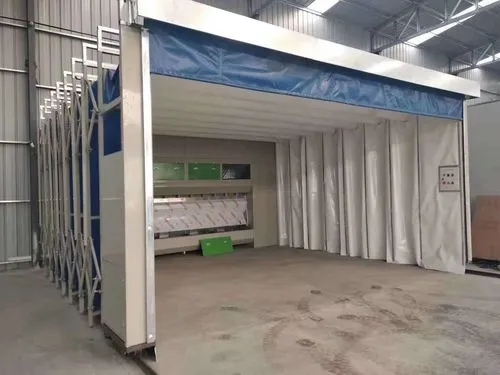

Retractable Mobile Telescopic Paint Booth portable Spray Booth for Large Workpieces
Advantages Of Retractable Painting Booth
- Nylon fiber mat,durable,non-deformable,waterproof and anti-corrosion,anti-exposure.
- Double-side double motor,equipped with reducer,smooth expansion and contraction.
- Interior equipped with water curtain carbinet,effectively purify paint mist.
- The use of high-quality square steel pipe expansion joints,strong bearing capacity,structural stability
- . Size.color can be customized
- Explosion-proof lighting system
- Voltmeter.push button switch,emergency stop,multiple circuit protection.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Description
| Booth Dimensions | |
| Internal dimensions | 12000*5000*5000mm(L*W*H) or customized |
| External dimensions | 13000*5500*5500mm(L*W*H) or customized |
| Cabin Structure | |
|
Retractable gantry structure,each gantry structure has 2 pieces of mecanum wheels. Fireproof PVC soft curtain on 2 sides,rear side and ceiling of cabin. With air extraction box at the rear. Special guide rails on both sides for the retractable steel structureto move,both sides are driven together and they are interiocked,with safety limit control ar the front and the back. |
|
| Entrance door |
Open-fronted Optional:entrance door with G3 grade fiberglass filter cotton. |
| Filtration system | |
| Exhaust filter | Pleated andreae filter+Fiberglass paint arrestor filter |
| Lighting system | Optional |
| Intake system | Nature air intake |
| Exhaust system |
|
| Exhaust fan | Direct-type turbine fan |
| Power & motor description | 7.5KW.970rpm,380V,50hz |
| Exhaust fan parameters | 600pa,28,00m2/h |
| Empty loaded air speed | 0.3m/s |
| Noise | <86db |
| Ductwork | With 5 pieces of straight ducting |
| Control System | Standard |
| Functions | Standard step-down start control system |
| Special Item |
Rated power,10KW |
