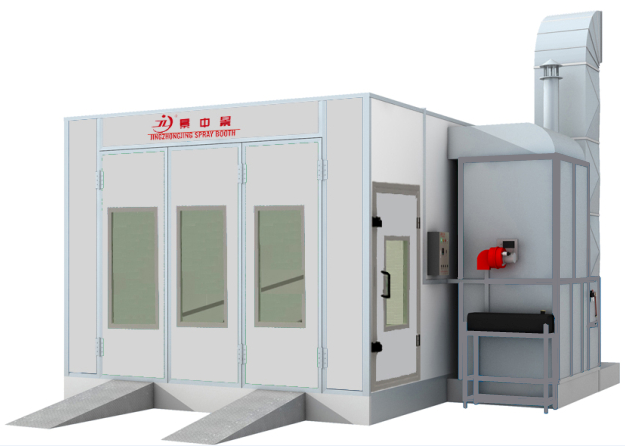

JZJ-9100 Spraying-Baking Booth

Outside Dimension (mm)

7006*5460*3420(L*W*H)

Inside Dimension(mm)

6900*4000*2650(L*W*H)

Front Door(mm)

3000*2600(W*H)

Service Door (mm)

800*2000(W*H)

Total Power

9KW

Total Weight(Ton)

3.8

Cabin System

Wall panel

50mm EPS sandwich panel, steel sheet thickness: 0.426mm

Ceiling panel

0.8mm galvanized steel sheet.

Front door

Three folds, metal sheet front door

Ramps

Two pieces 2000*600mm ramps

Basement

300mm depth, two rows grids and three rows checkered plates.

Glass

5mm safety tempered glass

Windows

Square glass windows

Air Make-up System

Air inlet fan system

1*7.5kw turbo fan

Exhaust fan system

For option

Air capacity

22000m³/h

Exhaust ducting

4 meters straight ducting, one 90°elbow and one 45°elbow.

Purification System

Pre-filter

G3 grade

Ceiling filter

EU5 / F5

Floor filter

Green fiber glass filter / G3 grade

Exhaust fan filters

Fiber glass filter and active carbon

Heating System

Heat exchanger

SUS304 material, argon arc welding.

Heating burner:

BT14 diesel burner

Heating productivity

140000Kcal/h

Spray to baking switch

Pneumatic damper

Chimney ducting

3 meters stainless ducting and one chimney cap

Max heating temperature

80℃

Fuel consumption

6-8L/vehicle

Lighting System

Ceiling lights

8 Units, each 4 * 18W LED lamps. Total 576 W

Side lights

For option

Illumination

800LUX

Controlling System

Switched control panel

Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm
