JZJ-8000-AU-Spraying-Baking Booth
Jingzhongjing spray paint room is a famous Chinese brand with a long history and is a leading enterprise in China. This model of spray paint room is highly loved by customers abroad and has received feedback from many customers, resulting in excellent results
|
Outside Dimension (mm) |
7006*5710*3420(L*W*H) |
Inside Dimension(mm) |
6900*4000*2650(L*W*H) |
|
|
Front Door(mm) |
3000*2600(W*H) |
Service Door (mm) |
800*2000(W*H) |
|
|
Total Power |
17KW |
|||
|
Cabin System |
Wall panel |
50mm rock-wool sandwich panel, double face steel sheet thickness: 0.6mm |
||
|
Ceiling panel |
Galvanized steel sheet. |
|||
|
Basement |
300mm depth, middle with grids, side with checkered plates. |
|||
|
Ramp |
Three pieces 2000*900mm ramps |
|||
|
Glass |
5mm safety tempered glass |
|||
|
Windows |
Square glass windows. |
|||
|
Air Make-up System |
Air inlet fan system |
1*7.5kw turbo fan, ABB/Siemens motor |
||
|
Exhausted fan system |
1*7.5kw turbo fan, ABB/Siemens motor |
|||
|
Air capacity |
25000m3/h |
|||
|
Air control method |
Air inlet system and exhausted system, each with 1 manual damper |
|||
|
Air ducting |
8 meters air duct, one flop damper and one weather hood |
|||
|
Purification System |
Pre-filter |
G3 grade, Pocket filter |
||
|
Ceiling filter |
EU5 / F5 |
|||
|
Floor filter |
Green fiber glass filter / G3 grade |
|||
|
Exhausted fan filters |
Pocket filter and active carbon |
|||
|
Heating System |
Heat exchanger |
SUS304 material, argon arc welding. |
||
|
Heating burner: |
Riello G20 diesel burner |
|||
|
Heating productivity |
180000Kcal/h |
|||
|
Spray to baking switch |
20N BELLIMO brand Electrical Damper |
|||
|
Chimney ducting |
3 meters stainless ducting and one chimney cap |
|||
|
Max heating temperature |
80℃ |
|||
|
Heating time |
4-6min(20-60℃) |
|||
|
Fuel consumption |
5-6L/vehicle |
|||
|

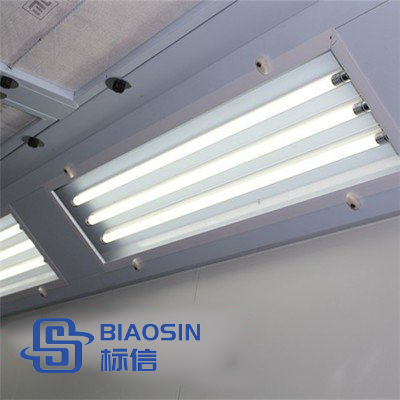

Lighting System |
Ceiling lights |
10 Units, each 4 * 18W LED lamps. Total 720 W |
||
|
Side lights |
8 Units, each 2 * 18W LED lamps, Total 288W |
|||
|
Illumination |
1000LUX |
|||
|
Controlling System |
Switched control panel |
Spraying & baking switch, before baking flash-off, after baking flash off, lighting switch, emergency stop, breakdown alarm, failure alarm |
||
