European Standard Electric Infrared Heaing Model 9200d Spray Paint Booth for Car
| After-sales Service: | 12 Months |
|---|---|
| Warranty: | 12 Months |
| Type: | Spray Booth |
| Certification: | CCC, CE, ISO9001 |
| Substrate: | Steel |
| Brand: | Jzj |
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout

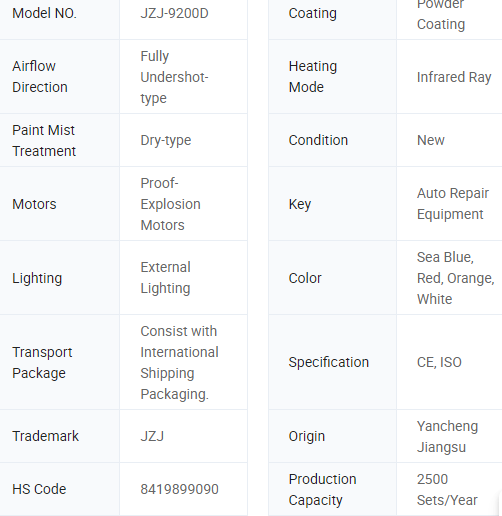

Basic Info.
Specifications
| Outside Dimension (mm) | 7006*5556*3450(L*W*H) | Inside Dimension(mm) | 6900*4000*2650(L*W*H) |
| Front Door(mm) | 3000*2600(W*H) | Service door (mm) | 800*2000(W*H) |
| Total Power | 38KW | ||
| Cabin system | Wall panel | 50mm EPS sandwich panel, steel sheet thickness: 0.426mm | |
| Basement | 300mm depth, middle with grids, side with checkered plates. | ||
| Ceiling panel | 0.8mm Galvanized steel sheet. | ||
| Ramps | Two pieces 2100*900mm ramps | ||
| Glass | 4mm safety tempered glass | ||
| Windows | Square glass windows | ||
| Air Make-up System | Air Inlet fan system | 2*4kw centrifugal fan | |
| Exhausted fan system | For option | ||
| Ai capacity | 24000m3/h | ||
| Air Flowing speed | 0.25m/s in empty booth | ||
| Exhausted ducting | 4meters straight ducting, one 90°elbow and one 30°elbow. | ||
| Purification System | Pre-filter | G3 grade, Pockets | |
| Ceiling filter | EU5 / F5 | ||
| Floor filter | green fiber glass filter / G3 grade | ||
| Exhausted fan Filters | green fiber glass filter and active carbon | ||

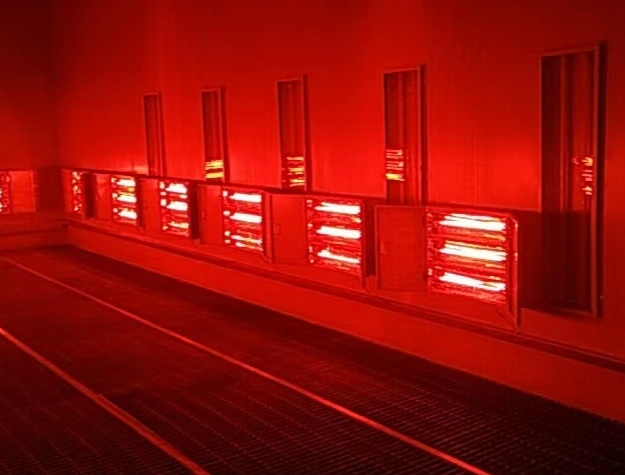

| Heating System | Infrared heating system | 10 Units 3000W Infrared heating lamps, Total: 30KW | |
| Max Temperature | 80degrees | ||
| Lighting System | Ceiling lights | 8 Units, each 4 x 36W lamps. Total 1152 W | |
| Side lights | For option | ||
| Illumination | 900LUX | ||
| Controlling system | Switched control panel | Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge |
|
