Electric Heating Spray Equipment Car Paint Booth Auto Spray Booth Baking Oven for Australia Market
Warranty:12 Months
Type:Spray Booth
Certification:CCC, CE, ISO9001
Substrate:Steel
Brand:Jzj
Coating:Powder Coating
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout

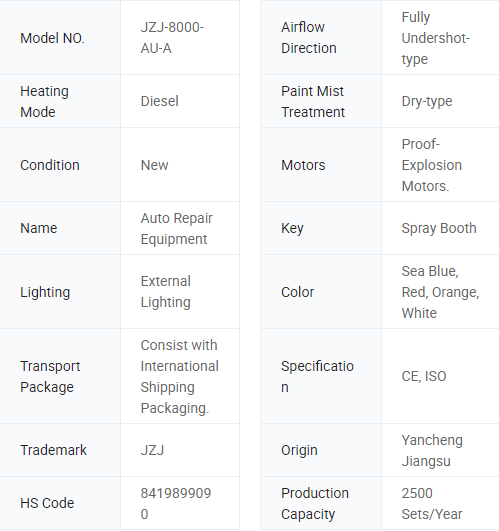

Basic Info.
Specifications
| Outside Dimension (mm) | 18156*6906*5800(L*W*H) | Inside Dimension(mm) | 18000*5000*5000(L*W*H) |
| Front Door(mm) | 4000*4500(W*H) | Service door (mm) | 800*2000(W*H) |
| Total Power | 98KW | ||
| Cabin system | Wall panel | 75mm EPS sandwich panel, steel sheet thickness: 0.6mm | |
| Ceiling panel | 50mm rock-wool panel. | ||
| Windows | 4mm safety tempered glass | ||
| Air Make-up System | Air Inlet fan system | 6*7.5kw centrifugal belt-drive fan, proof-explosion motor. | |
| Exhausted fan system | 3*15kw centrifugal belt-drive fan, proof-explosion motor. | ||
| Ai capacity for fresh air | 22000m3/h *6 | ||
| Air capacity for exhausted air | 19500m3/h *3 | ||
| Air Flowing speed | 0.25m/s in empty booth | ||
| Air Control method | One manual damper for exhausted system | ||
| Exhausted ducting | 6meters straight ducting, one 90°elbow for each unit fan system. | ||
| Purification System | Pre-filter | G3 grade | |
| Ceiling filter | EU5 / F5 | ||
| Floor filter | green fiber glass filter / G3 grade | ||
| Exhausted fan Filters | M green fiber glass filter. | ||
| Heating System | Heat Exchanger | SUS304 material, argon arc welding. | |
| Heating burner: | 3 sets Riello RG5S diesel oil burner(gas burner for option) | ||
| Heating productivity | 260000Kcal/h/ burner | ||
| Spray to baking switch | 20N BELIMO brand electrical damper | ||
| Chimney ducting | 6 meters stainless ducting for each heating system | ||
| Max heating temperature | 80degrees | ||
| fuel consumption | 10-15L /vehicle | ||
| Lighting System | Ceiling lights | 22 Units, each 4 x 36W lamps, Total 3312 W | |
| Side lights | 26 Units, each 2 x 36W lamps, Total 1872 W | ||
| Illumination | 900LUX | ||
| Controlling system | Micro-computerized programming system | Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge |
|
