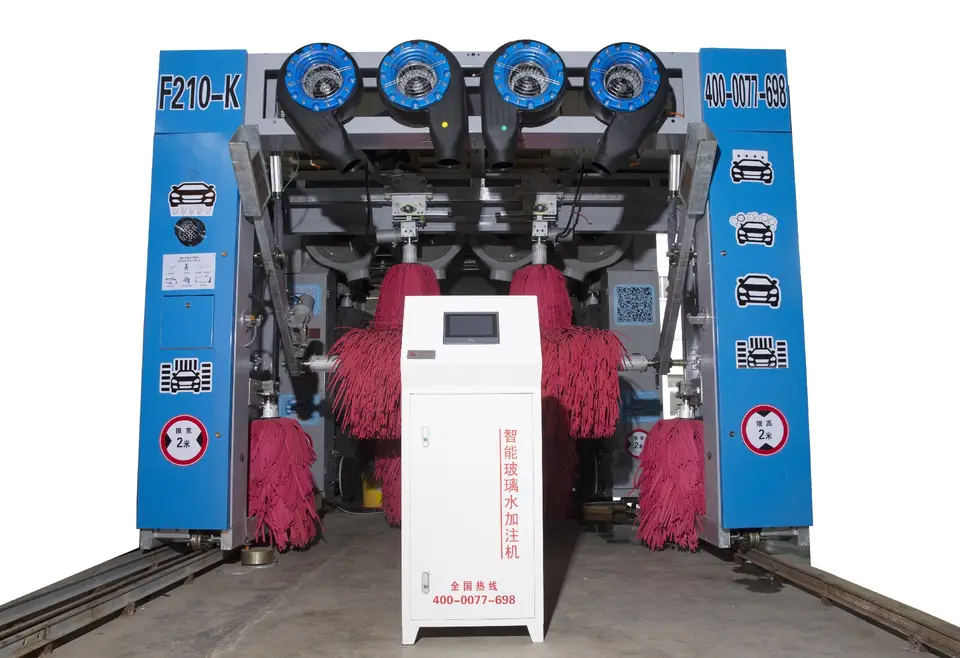

Car Washing Machine for car cleaning with preferential price

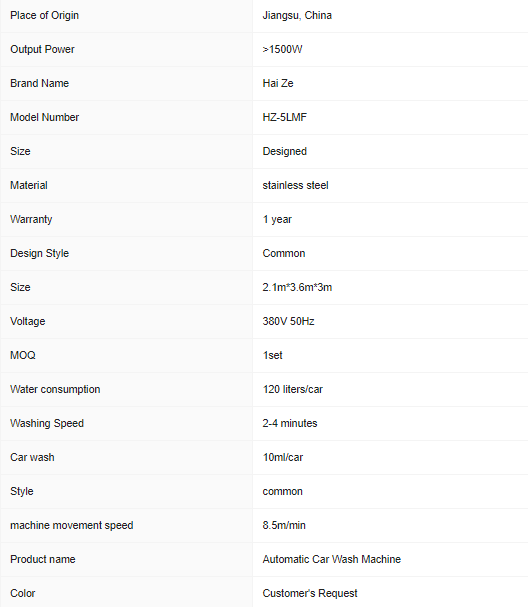

 Car Washing Machine Parameters

Project

Parameters

Remark

car wash speed

2-4 minutes

According to different modes

car wash water consumption

120 liters/car

Average number of different models

Car wash power consumption

0.5 degrees/vehicle

Average number of different models

Maximum car wash height

2100

Unit: mm

Maximum car wash width

2200

Unit: mm

Maximum car wash length

5500

Unit: mm

machine movement speed

8.5m/min

Frequency

Installed power

24KW

 All electrical equipment power

Installed voltage

380V/50Hz

Three-phase five-wire system, 10 square international cable

Equipment size

Length 2.1m Width 3.6m Height 3m

Unit: m

Installation size

10m long, 4m wide, 3.2m high (excluding the reserved space for import and export vehicles)

Unit: m

car wash

10ml/car

Car wash equipment function introduction table

Main body configuration system Reciprocating car washing machine

The main frame of the whole machine hot-dip galvanized sheet

Modular design, tenon-and-mortise structure

Coupling conversion transition drive system

Special thick bearing, precision transmission chain

International famous brand electric and gas system control center

Triple photoelectric protection 180-degree tactile anti-collision technology

22KW fixed air drying fan

Scan code for car wash payment, voice guidance

Intelligent variable frequency speed control

Siphon liquid supply control system (foam, water-wax ratio)

High-definition large-screen embedded touch-screen operation interface (central control and operating system)

American Banner Photoelectric Detection System

High performance waterproof motor, reducer

Silent stainless steel high pressure centrifugal pump

Stainless Steel Waterproof Sealed Walking Wheel

Intelligent copy current top brush system

Compression and flexible high pressure water pipe

Signal lights and display systems

Winter antifreeze drainage function

Free switching function of various cleaning modes

Upper and lower floor independent split design

Automatic high pressure water system

self-protection system, Fault alarm system, Machine emergency stop system

Chainless gear drive vertical brush system

High-quality anti-kneading tube wire/stainless steel fittings
