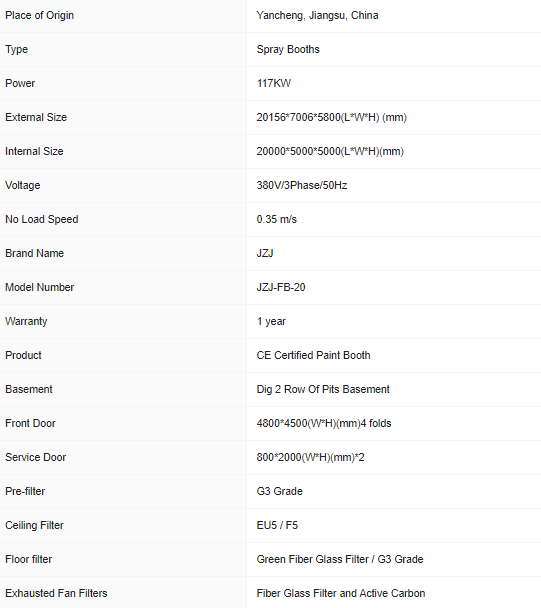

Auto Maintenance Equipment Passenger Portable Spray Booth With Rail Whole Room Move Painting Booth (JZJ-FB-20)

Outside Dimension (mm)

20156*7006*5800(L*W*H)

Inside Dimension(mm)

20000*5000*5000(L*W*H)

Front Door(mm)

4800*4500(W*H) 4 folds

Service Door (mm)

800*2000(W*H)*2

Total Power

117KW

Cabin System

Wall panel

75mm EPS sandwich panel, steel sheet thickness: 0.6mm

Ceiling panel

50mm rock-wool sandwich panel

Basement

Dig 2 row of pits basement

Windows

5mm safety tempered glass

Air Make-up System

Air inlet fan system

6*9kw centrifugal fan

Exhaust fan system

3*22kw belt drive centrifugal fan

Total air inlet capacity

134000m³/h

Total air exhaust capacity

129000m³/h

Air flowing speed

0.35m/s in empty booth

Air capacity control

Air inlet system and exhausted system, each with 1 manual damper

Exhaust duct

Each exhaust fan with 1*6 meters straight ducting, one 90°elbow and one 45°elbow.

Purification System

Pre-filter

G3 grade

Ceiling filter

EU5 / F5

Floor filter

Green fiber glass filter / G3 grade

Exhausted fan filters

Fiber glass filter and active carbon

Heating System

Heat exchanger

SUS304 material, argon arc welding.

Heating burner:

3sets Riello RG5S diesel burner

Heating productivity

260000Kcal/h*3

Spray to baking switch

20N BELIMO brand electrical damper

Chimney ducting

Each heating system with 1* 6 meters stainless ducting and one chimney elbow

Max heating temperature

80℃

Fuel consumption

10-15L/vehicle

Lighting System

Ceiling lights

26 Units, each 4 * 18W LED lamps. Total 1872 W

Side lights

26 Units, each 2 * 18W LED lamps. Total 936 W

Illumination

900LUX

Controlling System

Switched control panel

Spraying & baking switch, before baking flash-off, after baking flash off, lighting switch, emergency stop, breakdown alarm, failure alarm
