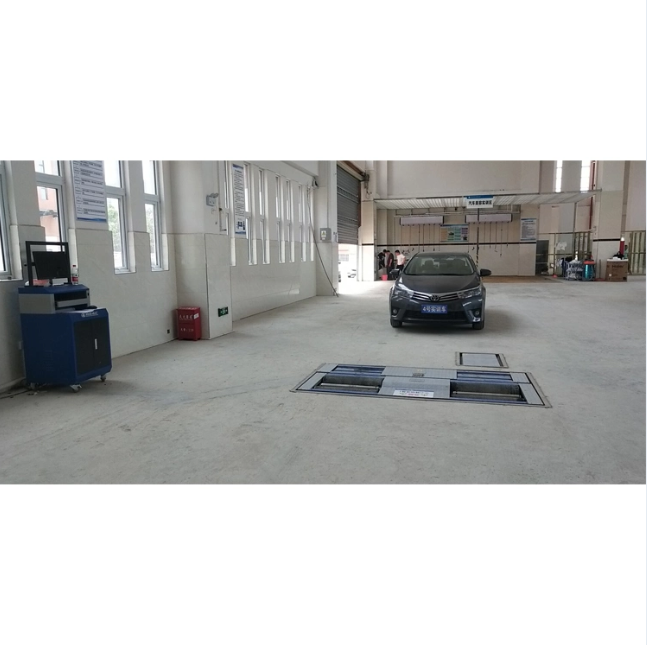

Auto Car Vehicle Test Line Roller 4-in-1 Vehicle Test Line
1, Using the patented technology to produce the sanding roller of the brake tester can guarantee 200000 times of testing life, the friction coefficient of the roller surface is more than 0.85, and the testing speed is up to 2.5km/h
2, High efficiency self-locking variable speed motor (3.0kw / 380V) is adopted for the roller brake tester with axle load, and the product is durable and can be upgraded to the brake tester with wheel load
3, Sideslip tester with tire lateral elastic force release device, which check the car front wheel side slip in effectively improve the precision and accuracy. Automobile sideslip tester can be upgraded from single plate sideslip tester to double plate sideslip tester
4, Largest through- axial load is 4000 kg; Industrial control computer controlled
5, The test line can be equipped with headlight tester, gas analyzer, Opacimeter, sound level meter, monitoring camera, networking interface, etc., and all test results are displayed in one report
| No. | Items | CTGT-3-4 | CTGT-3-4C | |
| 1 | The max. axle load | 3000kg | 3000kg | |
| 2 | Applied wheel tread | 800-2200mm | 800-2200mm | |
| 3 | Motor Power | 3KW*2,2.2KW*2 | 3KW*2,2.2KW*2 | |
| 4 | Power supply | AC380V±10%50HZ | AC380V±10%50HZ | |
| 5 | Brake tester | Roller diameter | ∮245×700mm | ∮245×700mm |
| Roller center distance | 430mm | 430mm | ||
| Braking force test range | 0-9000N | 0-9000N | ||
| Indicating error | ±3% | ±3% | ||
| 6 | Suspension tester | Test range | 0-1500 kg | 0-1500 kg |
| Axle load error value | ±2% | ±2% | ||
| 7 | Sideslip tester | Test range | ±10m/km (Single plate) | ±15m/km (double plate) |
| Indicating error | ±0.2m/km | ±0.2m/km | ||
